black or white color Pipe wrapping coating material
25 mils 0.635 mm
50 mm to 800 mm
30 m to 180 m
ISO 9001,ISO 14001,ISO 18000
ASTM D 1000, ASTM D 570 , ASTM D 257, ASTM D 149 &DIN 30672
anti corrosion material
10 Ton/Tons per Day black or white color Pipe wrapping coating material
Packaging & Delivery
also called pipe anticorrosion adhesive tape, pipe anticorrosion tape, polyethylene cold wrapping tape,
composite polyethylene anticorrosion adhesive tape, etc. Featuring excellent insulativity, good anticorrosion effect, high mechanical strength, small water absorption,
long service lifetime, good resistance to impact and ageing, the product can be used in the construction conveniently with safety and no pollution. It is widely applied
in many areas with high efficiency.,4/8/12/24 rolls per carton
Shipped in 7 days after payment
black or white color Pipe wrapping coating material consists of polyethylene film backing and the adhesive layer whose main component is butyl rubber. It is produced through extruding the composite anticorrosion materials. The adhesive layer is attached to the polyethylene film backing through thermal compounding. The anticorrosion system is comprised of primer, anticorrosion adhesive tape (inner tape) and protective tape (outer tape) or only primer and anticorrosion adhesive tape.The Coating & Wrapping system as defined by this specification consists of three part systems made up of the following parts for either hand/machine application:
a) TAPE -INNER:This portion consists of two parts:
i) Adhesive : Inner layer of BUTYL Rubber.
ii) Backing : Outer layer of Polyethylene (PE) Plastic.
Total thicknessL 25 mils )0.635 mm）
b) TAPE- OUTER:This portion consists of two parts as mentioned in inner wrap tape i.e.
i) Adhesive of BUTYL Rubber and
ii) Backing of Polyethylene (PE) Plastic.
Total thicknessL 25 mils )0.635 mm）
black or white color Pipe wrapping coating material mainly used for outer surface anti corrosion of the steel pipeline which is buried under the ground for petroleum transportation. It has been used as the external anticorrosion material for oil and gas steel pipeline for more than 40 years since 1960s. The merits of excellent property and convenient construction allow the product to play a very important role in the pipeline anticorrosion material system. With the continuous improvement in specification and quality of the product, the application range of the product is expanded largely and constantly.
black or white color Pipe wrapping coating material also called pipe anticorrosion adhesive tape, pipe anticorrosion tape, polyethylene cold wrapping tape, composite polyethylene anticorrosion adhesive tape, etc. Featuring excellent insulativity, good anticorrosion effect, high mechanical strength, small water absorption, long service lifetime, good resistance to impact and ageing, the product can be used in the construction conveniently with safety and no pollution. It is widely applied in many areas with high efficiency.
1/2/3/4/6/8/12 /24rolls per carton
Size of inner core
76 mm,41 mm
50 mm to 450 mm or 800 mm jumbo rolls
more than 50 N/cm
30 m to 300 m or 1000 m jumbo rolls
Adhesion to Primer pipe
23N/cm at least

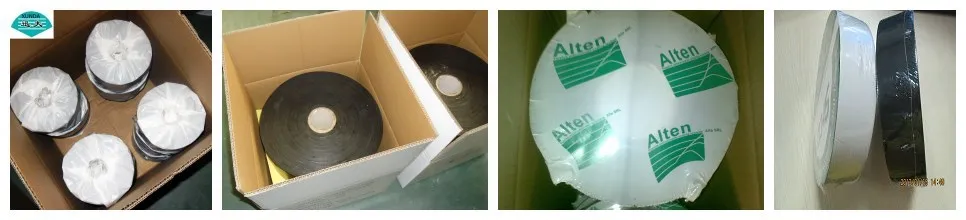

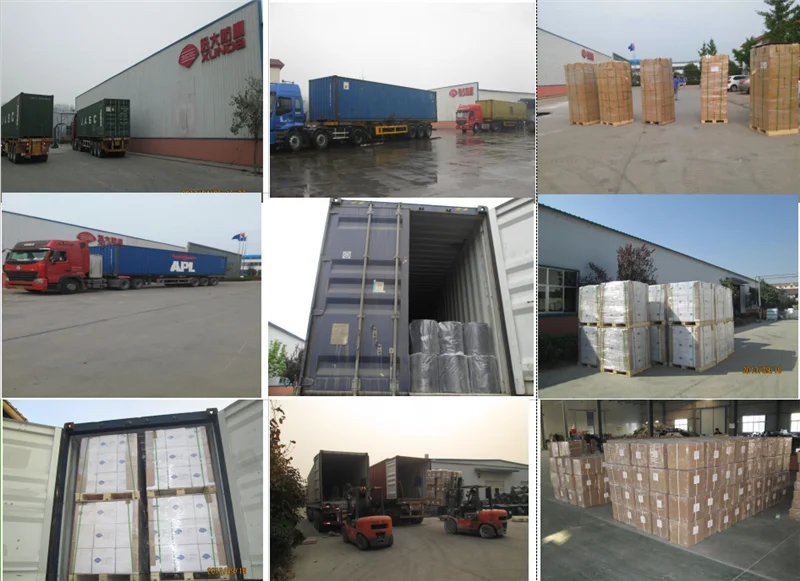

Packing and Delivery
Production & QC
XUNDA tapes Serves for Oil, Gas and Water Transmission pipeline market Oil and Gas distribution and utility market New pipeline construction market Rehabilitation and Reconditioning market Offshore/onshore Industry Refinery and Petrochemical Plant Industry
Q1. Can I have a sample order for SIMILAR TO ALTA ALTENE BRAND PIPE WRAPPING TAPE?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than one full 20 ft container.
Q3. Do you have any MOQ limit for pipe wrap tapes order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for tapes?
A: Firstly let us know your thickness or the total coating thickness
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on tape product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.We can print your logo on the carton or the inner core.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products according to the different products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
Secondly, during the guarantee period, we can replace it with your new order together , but we have to get some proof to supply to our directorate
we have the advanced production technology, Scientific management method, First-class R & D team, Perfect after sales service system . We are the Audited Suppliers of SINOPEC, CNOOC,CNPC.MEDCO,UKRAINETRANSGAS AND OTEHRS. Our factory established from 1998 and growing up to the largest pipeline anti-corrosion tape manufacturer in China since 2013 .
ISO CERTIFICATED FACTORY-ISO 9001.ISO 14001,OHSAS 18001
GERMANY DVGW TEST REPORT FOR XUNDA PRIMER +XUNDA T 400 SERIES 3 PLY INNER WRAP TAPE +XUNDA T 200 SEREIS OUTER WRAP TAPE
USA EXOVA TEST REPORT FOR XUNDA PRIMER +XUNDA T 100 SERIES INNER WRAPPING TAPE +XUNDA T 200 SERIES OUTER WRAPPING TAPE
SGS TEST REPORT FOR XUNDA PRIMER P 27 / XUNDA INNER LAYER TAPE T 165/XUNDA OUTER LAYER TAPE T 265
