3ply inner wrap tape for anticorrosion pipeline

FOB Reference Price:Get Latest Price
US $2-3 / Kilometers | 300 Kilometer/Kilometers (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
shandong xunda
Model Number:
XUNDA T400
Colour:
Black
Thickness:
1.0mm
Length:
100ft,50ft
Elongation at break:
500%
Standard:
ASTM D1000
Certificate:
DVGW SGS
Main markt:
Iran,UAE,Iraq,Kuwait,Turkey,Egypt,Libya,Ukraine,Russia,Bengal
materials:
Butyl rubber based on polyolefin backing
MOQ:
500Kg
brand:
OEM or ODM, as your requirements,
Supply Ability
Supply Ability:
500 Ton/Tons per Month
Packaging & Delivery
Packaging Details
310*330*320 12 roll
Port
Qingdao
Lead Time :
10 days after the order confirmed,and it depends on the quantity
Video Description

Anticorrosion 3ply inner wrapping tape-





06




Product Description

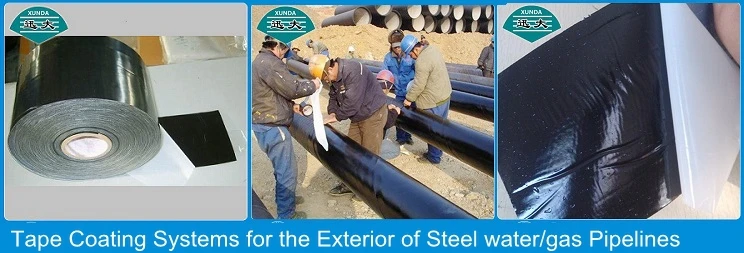

XUNDA T400&T200  3-ply Coating System

System Description

The Xunda T400 and T200 is a multilayer coating system designed for the corrosion protection and mechanical protection of pipelines. The T400 consists of three layers, the butyl rubber adhesive laminated on both side of the polyethylene film backing. The T400 can be used as inner tape, T200 can be used as outer tape.

Xunda liquid adhesive can be used as primer for this system. The three ply coating system produce a strong  cohesive bond to the primed steel surface, at the spiral overlap and to the mechanical outer tape.

The system can be applied by hand or with a wrapping machine.

System Features

Forming a sleeve type coating.

Resistant to soil stress

Cold applied without special equipment.

Excellent adhesion to primed pipe and itself.

Can be applied over a wide temperature range.

Good conformability and consistent uniform thickness.

Compatible with common pipe coatings.

Excellent resistance to cathodic disbondment.

Long term in-ground performance

Meets ASTM D 1000 ,EN 12068,DIN30672 and other international standards.

System Properties



Anti-corrosion Tape T400

Mechanical Protection Tape T200

T480

T4100

T4160

T238

T250

T264

T280

Backing

0.25mm

0.30mm

0.30mm

0.25mm

0.38mm

0.50mm

0.64mm

Adhesive

Internal

0.36mm

0.55mm

0.65mm



0.13mm





0.12mm





0.14mm





0.12mm



External

0.15mm

0.15mm

0.65mm

Tape

thickness

0.76mm ,1.00mm,1.10mm             0.38mm,0.508mm,0.635mm,0.762mm
